Food processing conveyor system.

  • Sector: Food processing
  • Application: Conveyors for food processing
  • Product to transport: packaged packages
  • Country of Destiny: Spain

Food processing conveyor system from the packaging line to the robotic packaging cell

GENERAL INFORMATION

  • Product to convey:
    • Macaroni package 1 Kg = 230 x 135 x 70 mm
    • Spaghetti package de 1 Kg = 290 x 115 x 85 mm
  • Installation tak time: 90 packages/minute

CONVEYOR SYSTEM

NT 150 30 – Belt

  • Folding conveyor to convey product to two different lines
  • Anodized aluminum profile structure.
  • FDA Belt

NT 300 20 – Slat chain

  • w¡2 ways slat chain conveyor with acumulation roller
  • Anodized aluminum profile structure.

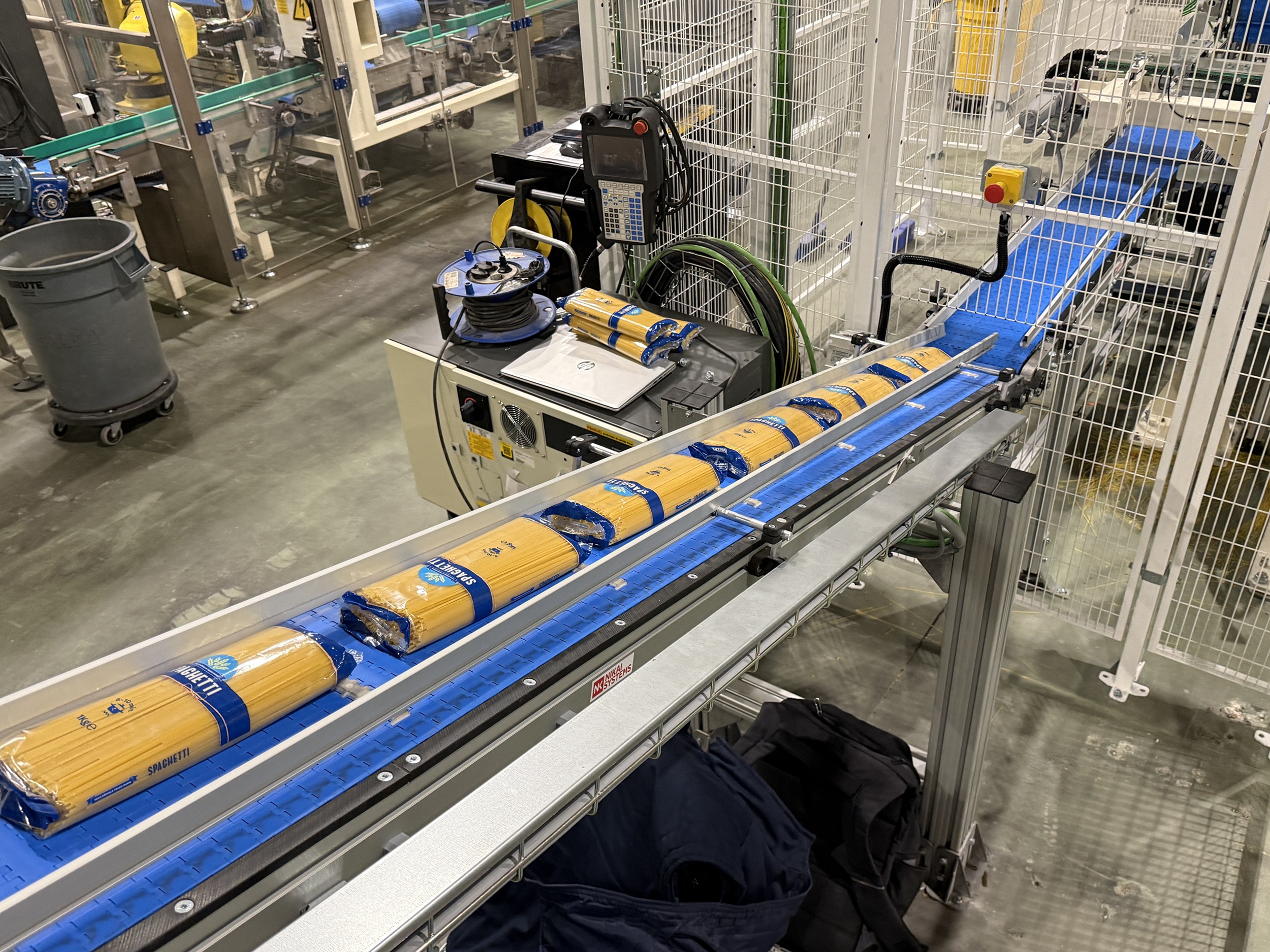

NT 510 20 – Modular

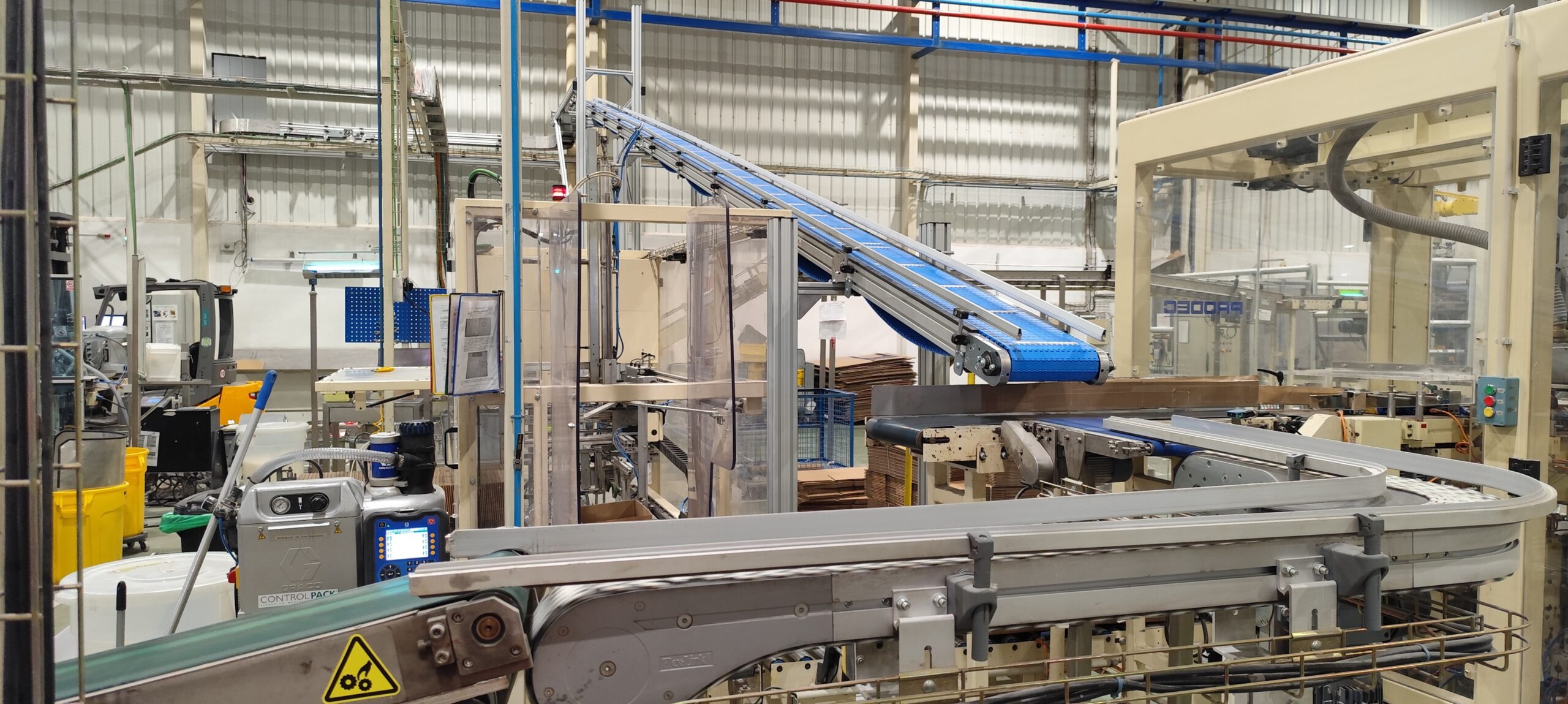

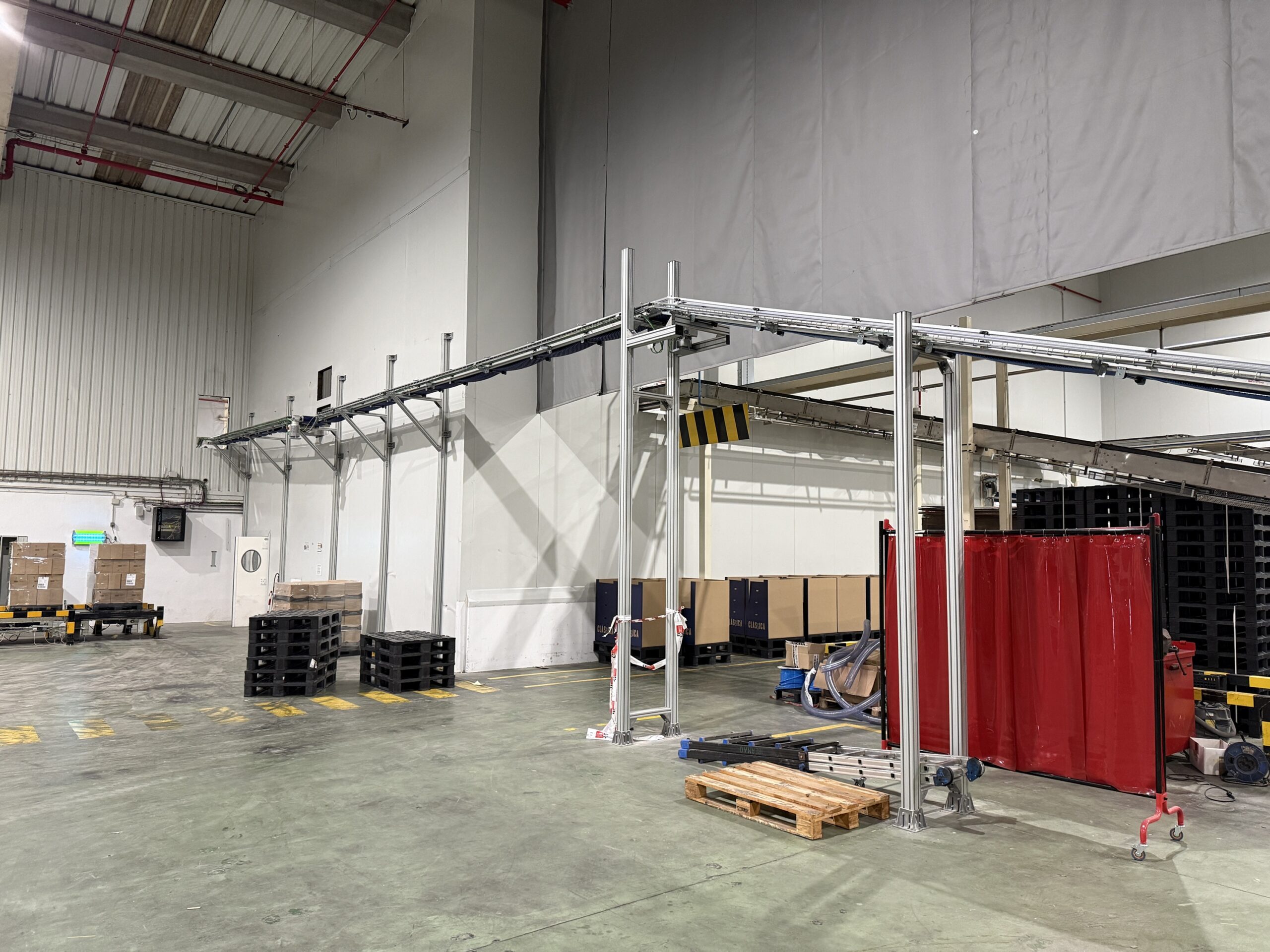

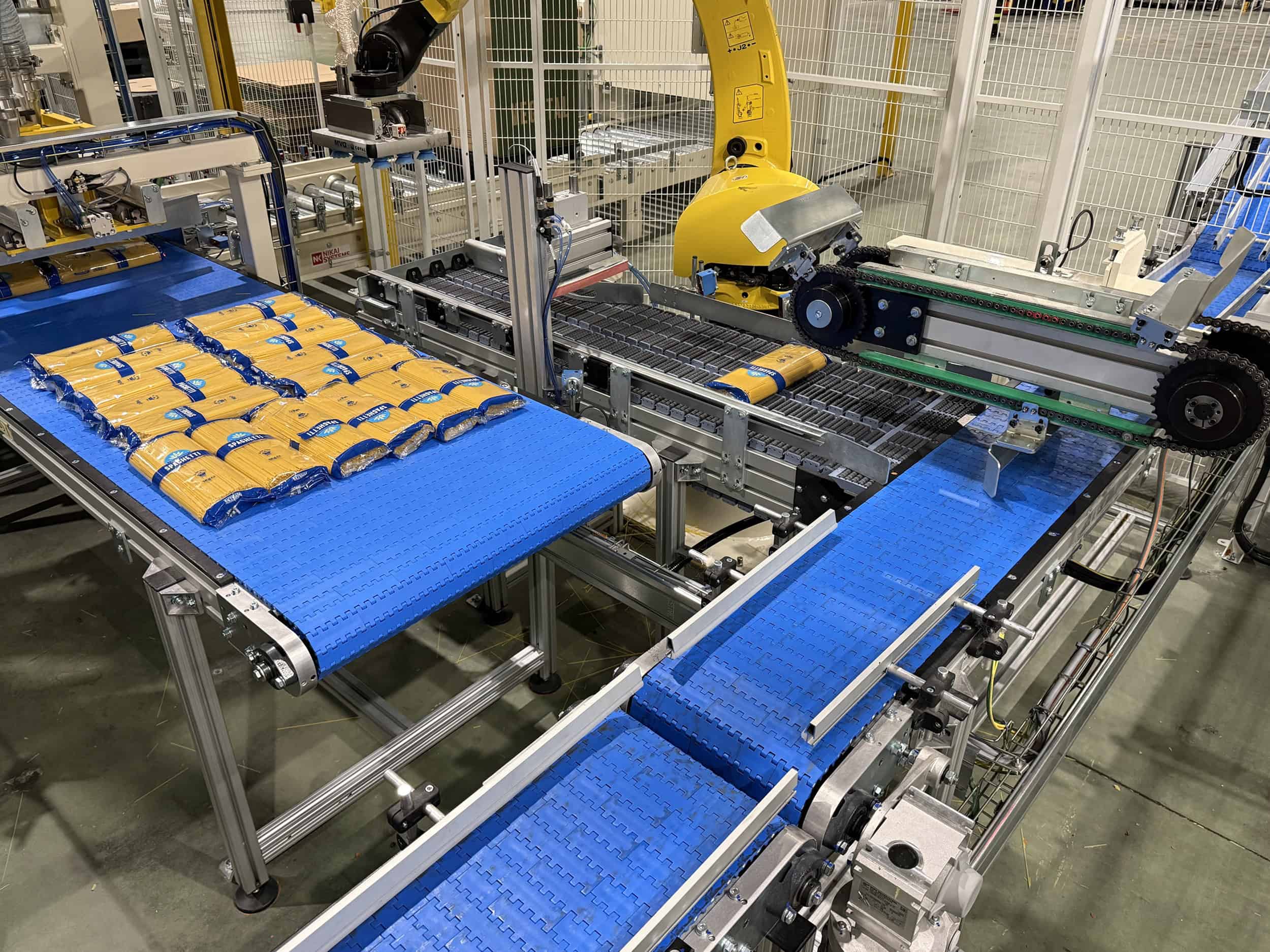

  • Inclined modular belt conveyor (belt with pullers) for overhead transport from the packaging area to the palletizing area. Modular belt conveyor for feeding packages to the loading robot. Folding belt conveyor for operator access. Anodized aluminum profile structure. FDA conveyor belt

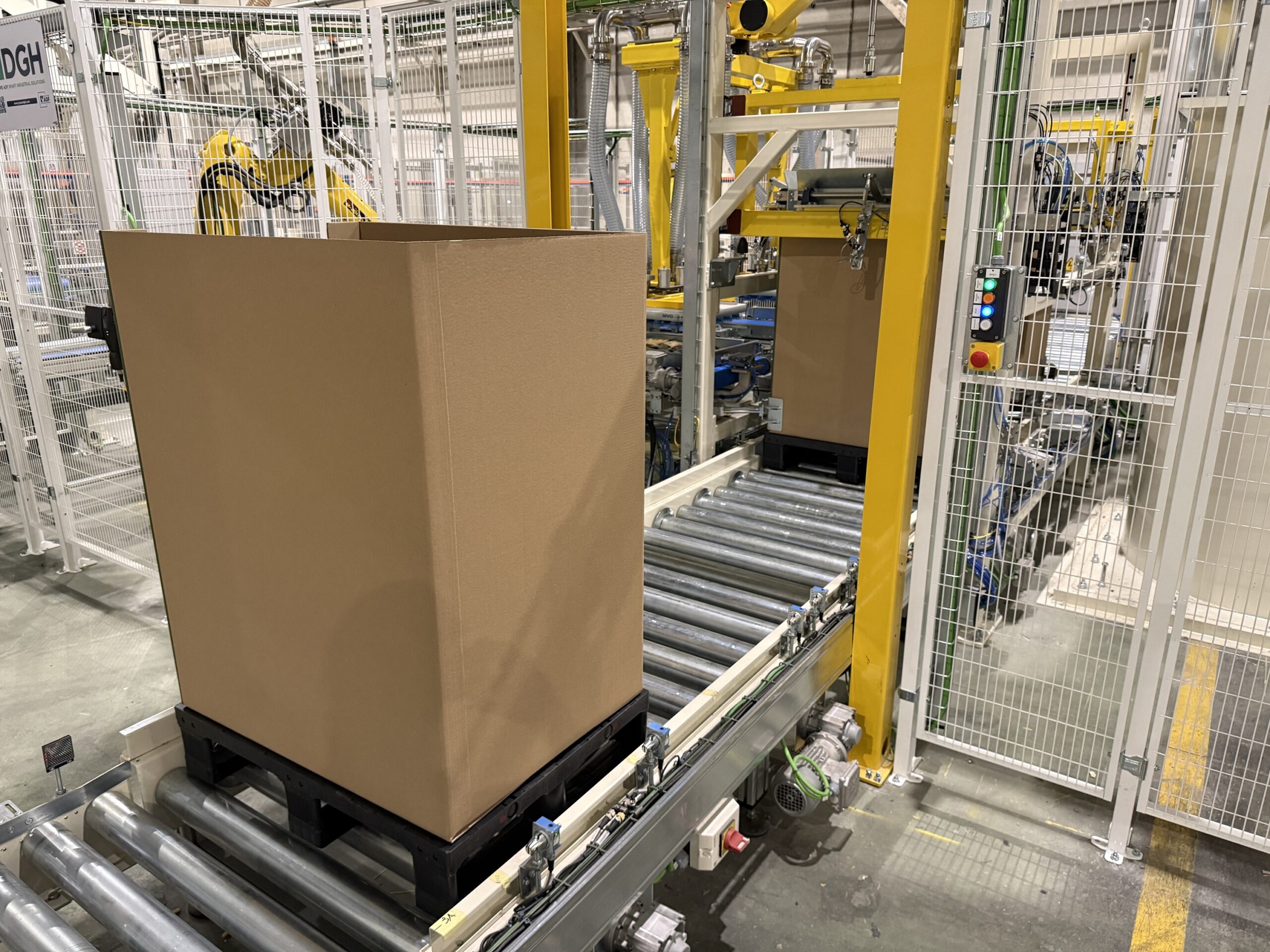

NT 271 00 – Rollers

  • Pallet roller conveyor. 89 mm diameter rollers Painted steel structure.

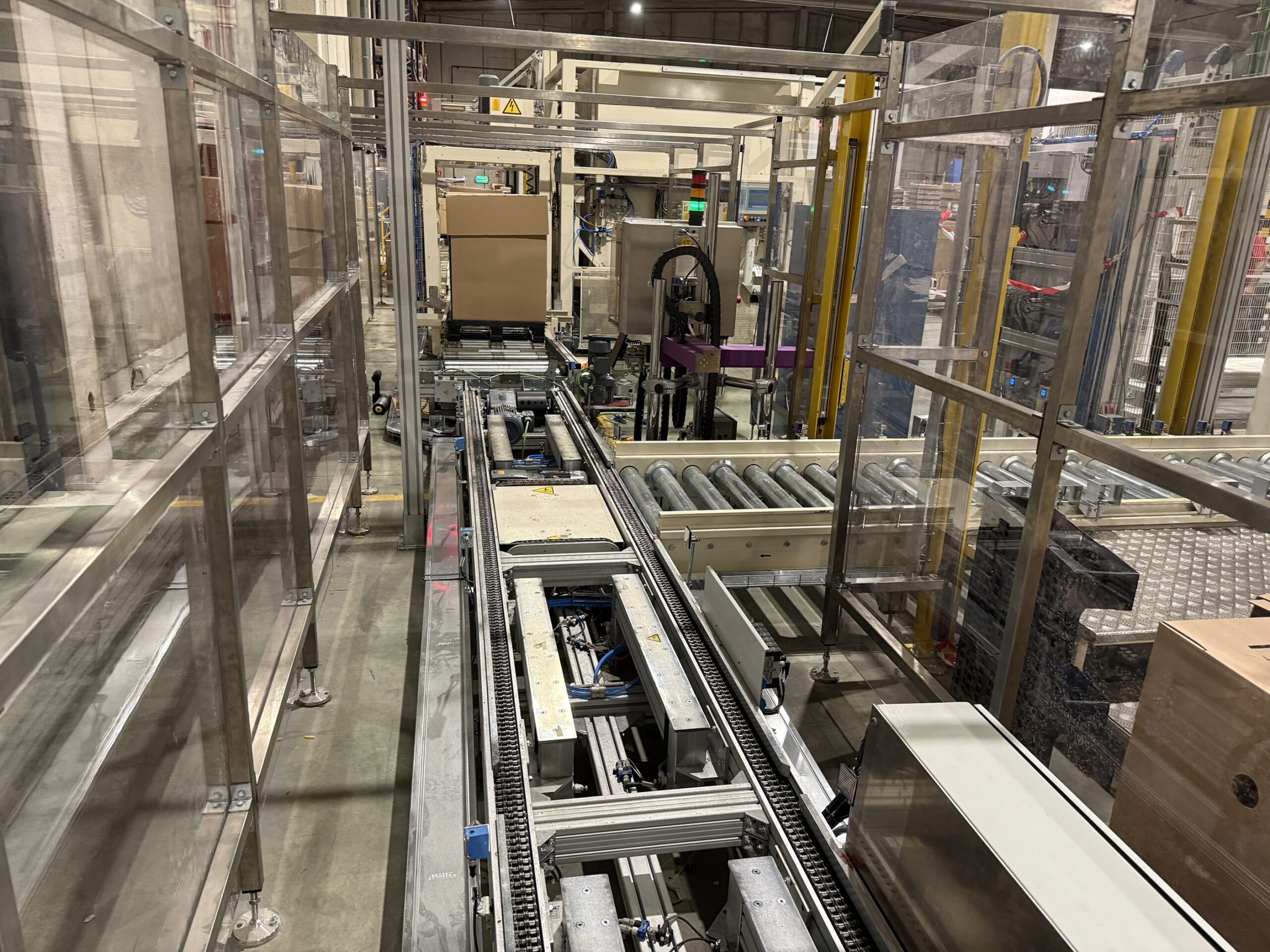

NT 870 10 – Chain

  • Chain conveyor for transporting pallets Structure in anodized aluminum profile. Pneumatic indexers for pallets.

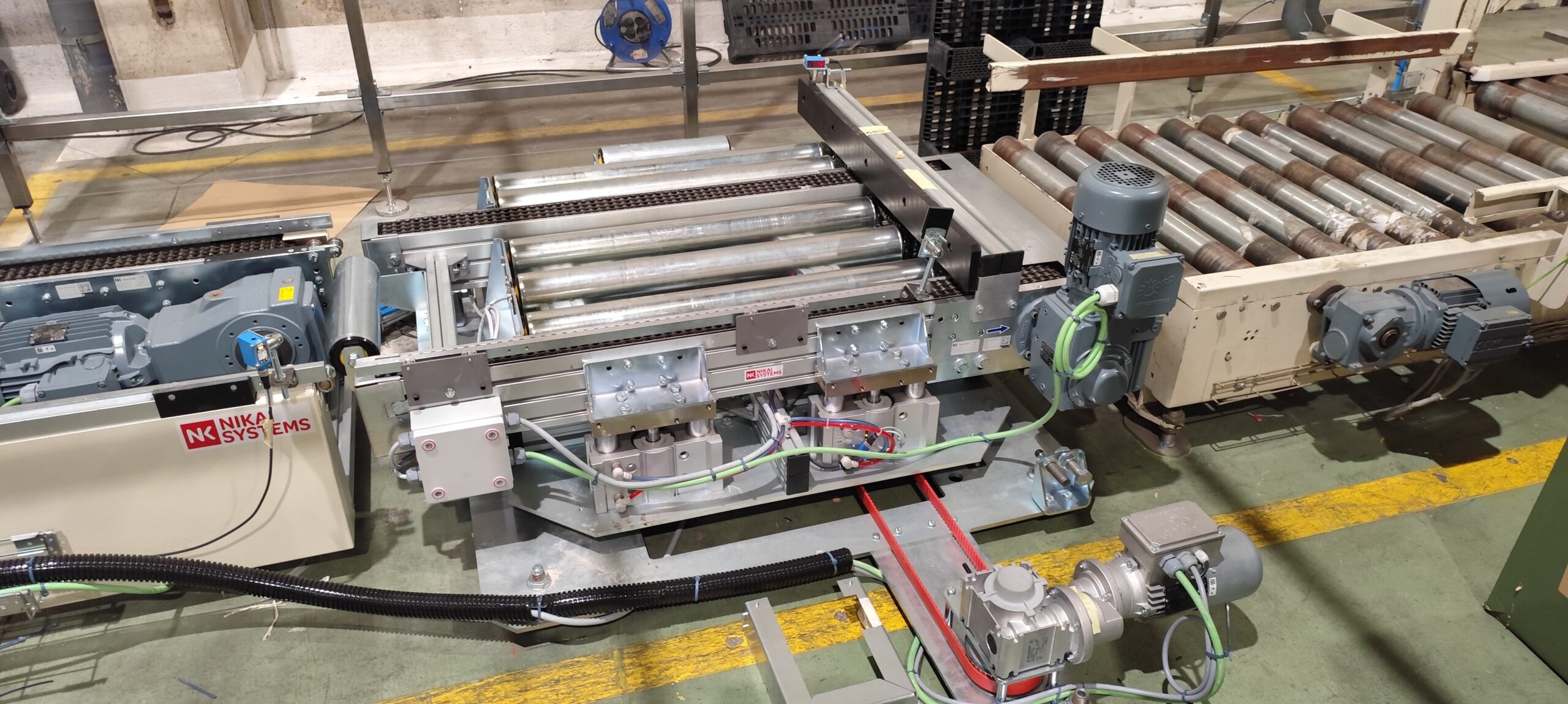

NT 600 35 – Pallet rotation system

  • 90º pallet rotation system with pneumatic transfer.
  • Anodized aluminum profile structure.

OTHERS

  • 3D mechanical design Assembly, installation, and testing at the client’s premises. Training of line personnel.

LAYOUT
